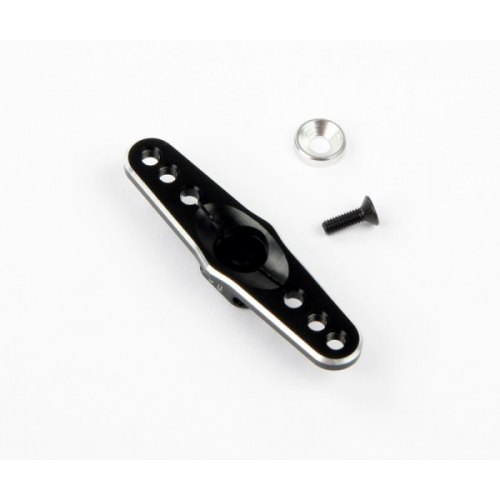

Robitronic Aluminium Servo Arm 23T Double (Light) Black

These CNC-manufactured aluminum servo levers are not only connected to the servo via the mounting screw from above, but also with two hexagon socket screws on the side. With these two screws, the servo arm is clamped and screwed onto the output shaft and ensures maximum hold even if a screw is lost. Another advantage is that it is now 100% backlash-free connected to the servo, which results in a more direct linkage and also relieves the gearbox. The number of teeth is lasered in as a number or abbreviation so that the type can also be determined later.

Since an aluminum servo horn is also much stiffer than a plastic arm, all commands are implemented much more directly and precisely. In addition, it is of course much more robust than the plastic servo arms that are usually installed as standard.

Technical specifications:
Total length servo arm: 48mm
Arm thickness: 3mm
Total height: 8mm
Servo arm is flush with the top
Offset for servo gearboxes: 3mm
Mounting holes: M3 including thread (2 pcs.)
Hole spacing of fastening holes to the middle: 16mm (hole 1) / 20mm (hole 2)

Suitable for:
Servos with 23 teeth gear rim / output shaft
e.g .: KoPropo / Sanwa / JR / Airtronic / Graupner / Multiplex / Spektrum

Scope of delivery:
1x anodized one-arm servo lever 23 teeth
2x Allen screws
1x aluminum sleeve
1x servo mounting screw M3

Data sheet

R17026
0.01 kg
