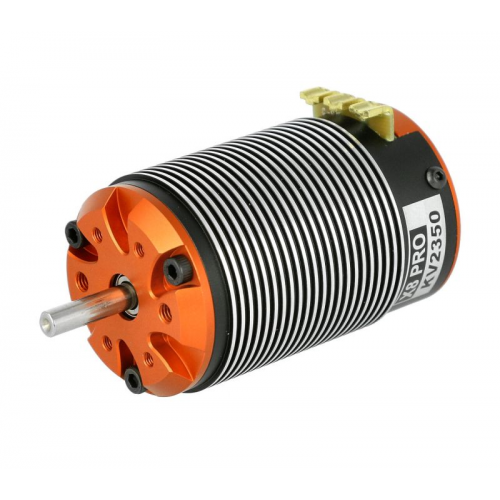

SkyRC Toro Brushless Motor X8 PRO 2350KV for Buggy 1/8

SK400009-11

New product

SkyRC Toro Brushless Motor X8 PRO 2350KV for Buggy 1/8

Immediately available

€ 65,99

SkyRC Toro Brushless Motor X8 PRO 2350KV for Buggy 1/8

These Motors are especially designed for the 1/8 Brushless Buggy Class. They meet all specs that are required to generate a maximum performance. The 4-Pole Rotor with Neodymium sintered magnets are giving a perfect power offering during the whole RPM range. The 12 Slot Hi-Torque Strator is supplying a fantastic torque. The rotor can get replaced very easy if needed. Based on the sensor the motor works very precisely as he is controlled by the sensor but the motor can be used also with a sensorless ESC. The CNC cutted T6 Alloy Case with cooling fins is very reliable and helps to cool down the engine during the race.

Features:

  • Sensored motor for 1/8 scale competition
  • CNC Machined T6 Billet Aluminum Heatsink Can
  • 12 Slots Stator Hi-torque Motor Design
  • Rotor-4 Pole Neodymium Sintered Magnets
  • High RPM & Supersized Bearings
  • High Purity Copper Windings for Maximizes Efficiency
  • Precision Engineered for Maximum Energy Conversion
  • Super High Current Silicon Wires
  • Super Strength 5mm Shaft
  • Removable /Replaceable Rotor

Technical Data:

  • KV (RPM/V): 2350
  • Watts: 2400
  • Max. Voltage: 19V
  • Max. Current: 126A
  • Internal Resistance: 0,0071 Ohm
  • Max. RPM: 45000
  • Weight: 350g
  • Shaft Diameter: 5mm
  • Turn: 2D
  • Rotor: 4 Pole
  • Sensor: YES
  • Mounting Holes: M3 & M4
