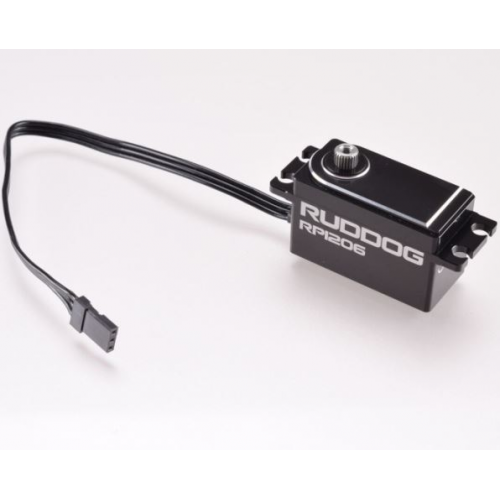

Ruddog RP1206 Low Profile High Voltage Coreless Digital Servo
Description:
The RUDDOG RP1206 Coreless Low Profile Servo was especially developed for the needs of 1/10 vehicles. It is the perfect fit for offroad and onroad and offers not only the necessary power and speed for high demanding competition cars, but also the perfect looks for it. 0.07sec speed and 10kg torque at 6.0 Volts, aswell as 0.06sec and 12kg at 7.4 Volts will give you enough power and speed under all circumstances. The servo case is fully made of aluminium and high-class anodized and laser edged. We even took care that the mandatory legal notes (CE and WEEE) are at the right spot hidden behind your servo mount. Furthermore the servo features a all-black wire and is available in two version with 8cm(RP-0080) and 18cm(RP-0081) wire length. So you can choose the perfect length for your car.
Specs:
Torque(6.0V): 10.0 kg-cm
Speed(6.0V): 0.07sec
Torque(7.4V): 12.0 kg-cm
Speed(7.4V): 0.06 sec
Operating Voltage?6.0 ~ 8.4 DC Volts
Weight: 52.0 g
Bearing Type?Ball Bearing x 2
Motor Type?Coreless Motor
Gear Type?Titanium & Alu
Operating Temperature?-20?~60?
Working frequence?1520?s / 333hz
Size?41.0 x 20.0 x 26.4 mm
