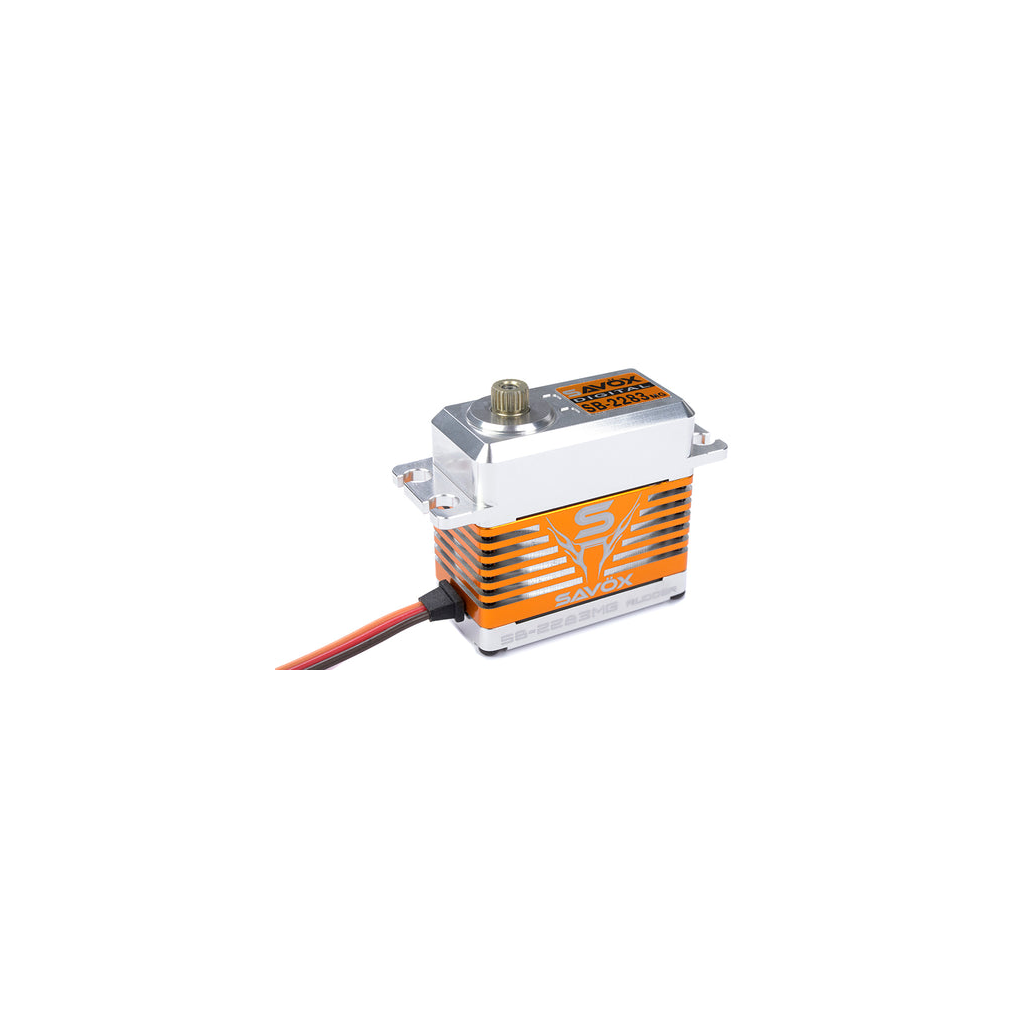

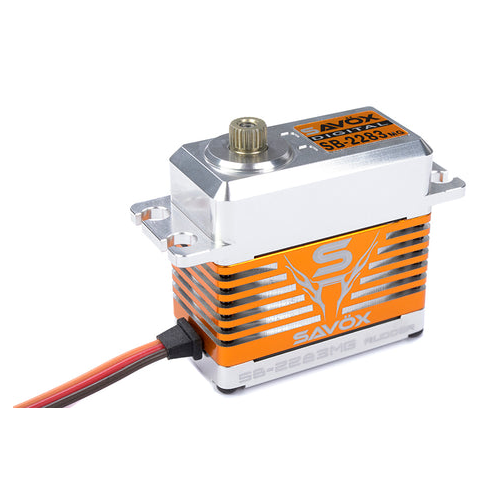

Savox SB-2283MG HV Brushless Digital Servo Full Metal

Savox SB-2283MG HV Brushless Digital Servo Full Metal

€119.00 €139.00 - €20.00
Free for 3967 points Free for 3967 points
check Available
100% secure payments
>Earn 24 points/€0.72 Earn 24 points/€0.72 (Each €5.00 spent = 1 point, 1 point = €0.03 discount)
Your cart will total 24 points that can be converted into a voucher of €0.72.
Secure payments with credit card and PayPal
Worldwide shipments with express courier
Money Back Guarantee

Description

Savox SB-2283MG HV Brushless Digital Servo Full Metal

The SB2283MG is an ultra high speed servo running at .048sec transit @ 7.4V. This servo is a great choice for your heli gyro.

Features:
Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
Super light-weight.
Brushless motor provides longer life and cooler operating temps.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Our servos are totally green - from materials to production, these servos are environmentally friendly.
Intended for use in heli rudder applications only.

Dimensions(mm)    40.3 x 20.2 x 38.7
Weight(g):    69.0
Speed @6.0V:    .06sec
Torque@6.0V:    69.4 oz-in
Speed @ 7.4V:    .048sec
Torque @ 7.4V:    138.9 oz-in.
Gear Type:    Metal
Bearings:    2 BB
Frequency:    250-333Hz
Pulse Width Frequency:    1520>

Data sheet

SAV-SB2283MG
0.20 kg
