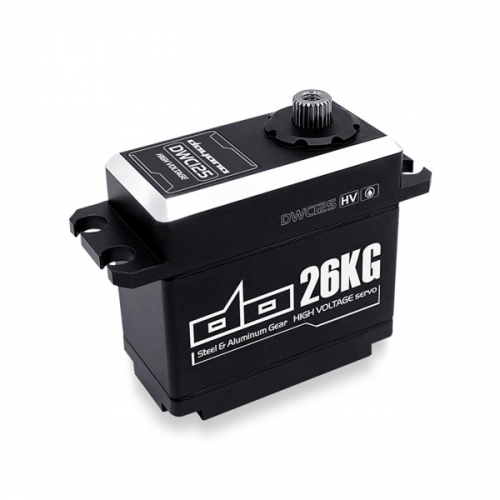

DOYONO DWC125 Coreless High Voltage Standard Size Digital Servo
Earn 13 points/€0.39
(Each €5.00 spent = 1 point, 1 point = €0.03 discount)
DOYONO DWC125 Coreless High Voltage Standard Size Digital Servo
Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 26kgcm and coreless motor has a aluminium steel gear and a weatherproof aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.
Features:
Technical Specifications:
| Voltage: | 6.0V | 7.4V |
| Speed: | 0.16sec | 0.14sec |
| Torque: | 20.0kgcm | 26.0kgcm |
| Motor: | Coreless | |
| Gear: | Aluminium / Steel | |
| Bearing: | yes, dual | |
| Max. Travel: | ~110° (bei 800: 2200µs) | |
| Quiescent Current: | 40mA @6.0V | |
| Rated Current: | 0.2A @6.0V | |
| Blocking Current: | 2.5A @6.0V | |
| Dimensions: | 40.7x20.5x38.9mm | |
| Weight: | 84.0g | |
| Output Gear: | 25T | |
